The neoVI RED 2 Series has up to eight dual wire CAN FD channels, two LIN channels, and two Gigabit Ethernet channels. The neoVI RED 2 fills the need for multiple protocol tools with a low-cost, high-value vehicle bus interface that fits in your backpack.

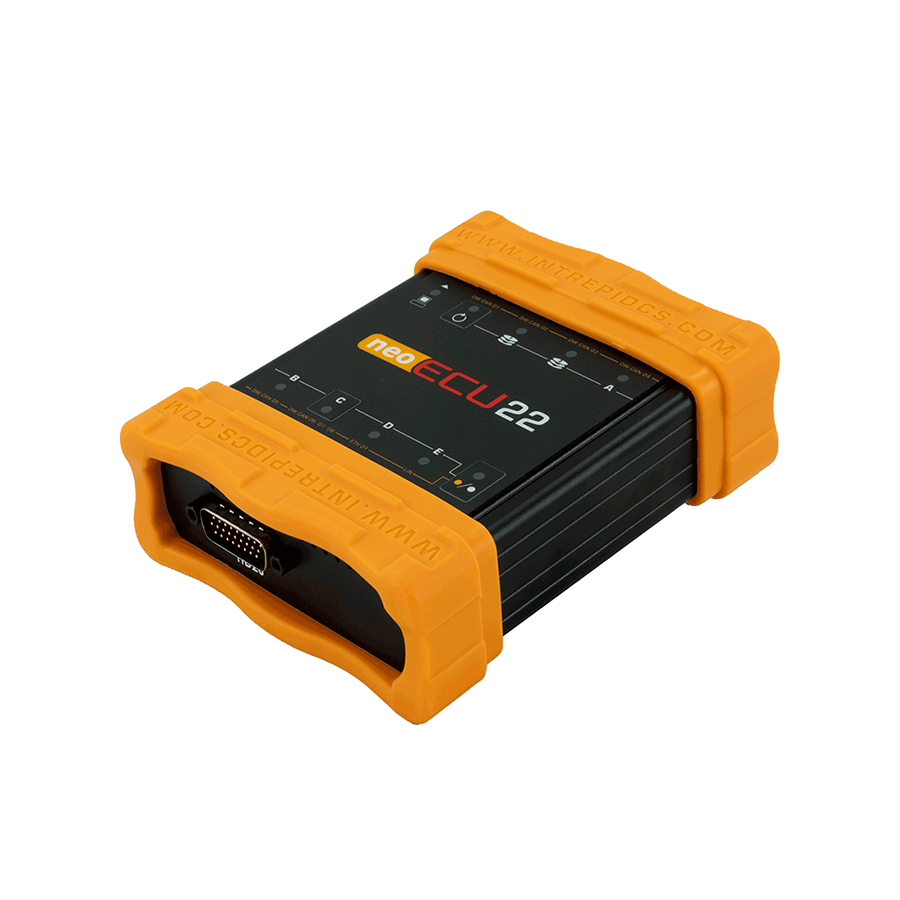

The neoECU 22 is a rapid prototyping tool for CAN, CAN FD, LIN and Ethernet. The neoECU 22 can be scripted to gateway, control and measure automotive network traffic and PDUs in minutes. Logic can be defined in Vehicle Spy’s Function Block scripts, or embedded C code, allowing you to keep your project moving.
The neoVI FIRE 3 is the most advanced multi protocol vehicle network interface and data logger available, providing 16x CAN FD networks, up to 8x LIN networks, 2x 1 Gb 10/100/1000BASE-T, 1x 10/100BASE-Tx.

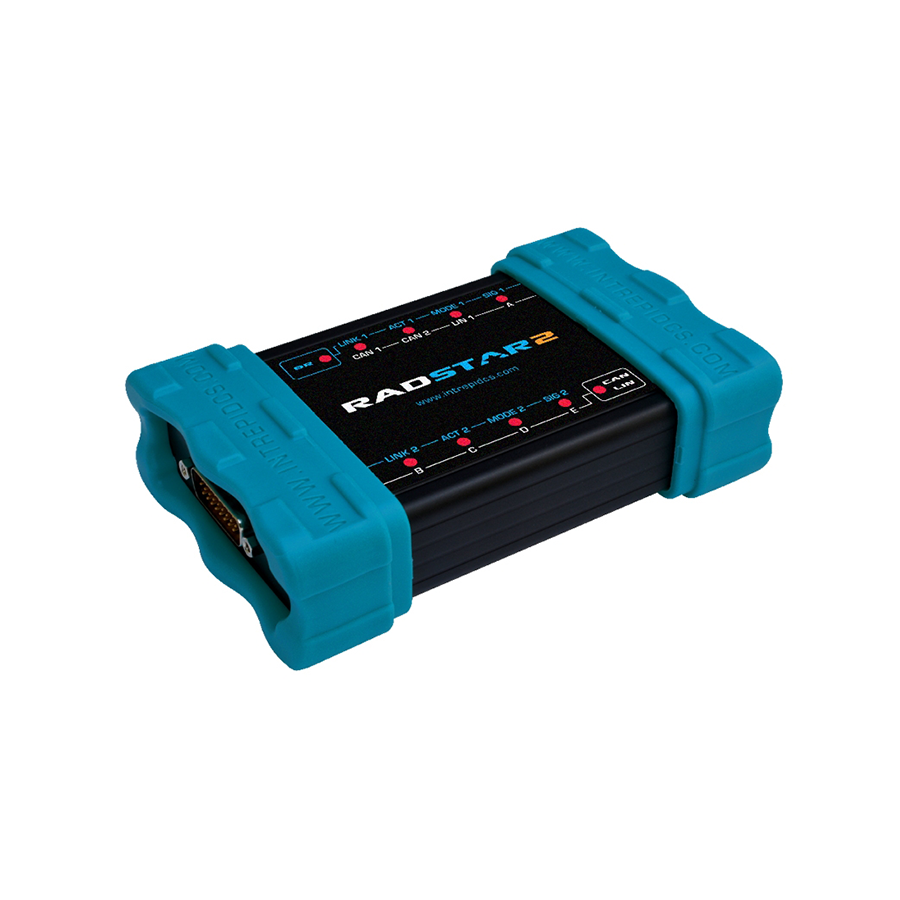

Intrepid’s RAD-Star 2 is a multi-purpose, dual Ethernet gateway for Automotive Ethernet applications. Using the RAD-Star 2, you can monitor both sides of a BroadR-Reach® (100BASE-T1 compatible) connection or connect your laptop to 2 nodes in media converter mode. As a gateway to standard 8-wire Gigabit Ethernet, RAD-Star 2 makes any existing standard Ethernet device, laptop, or data logger compatible with BroadR-Reach® (100BASE-T1 compatible).

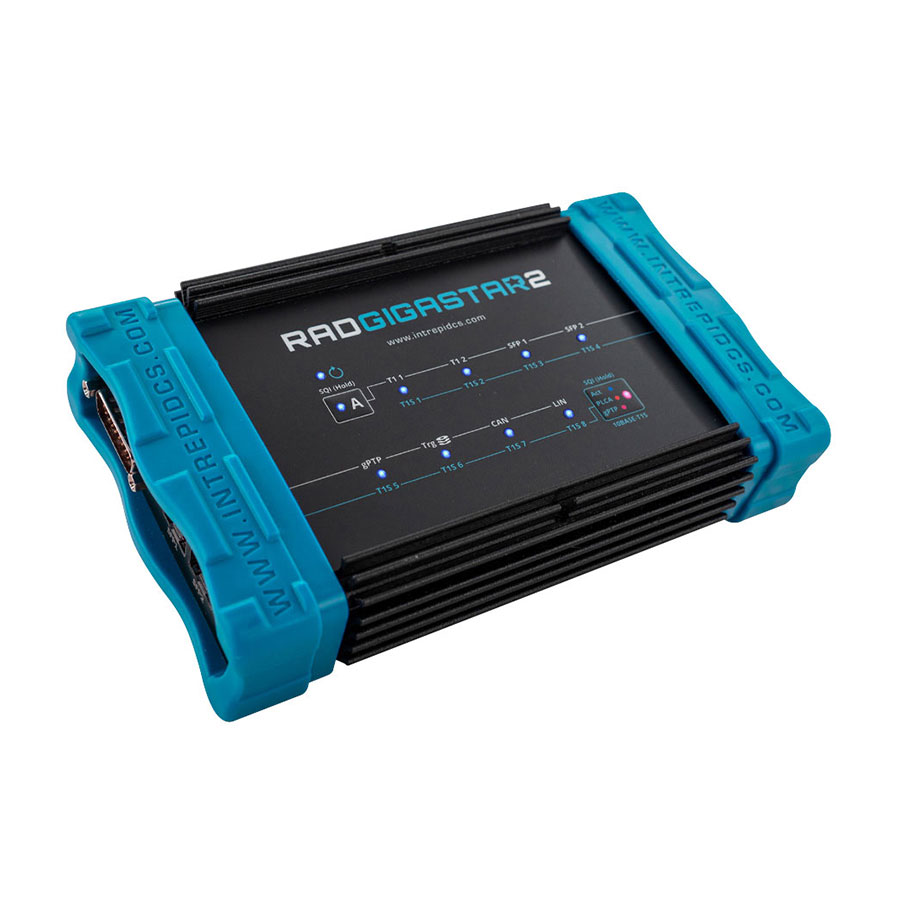

The RAD-Gigastar can monitor one pair of 100/1000BASE-T1* connections with an additional pair of SFP cages to support optical/ copper SFP transceivers. In addition, the RAD-Gigastar can also operate as a programmable gateway to create an Ethernet-to-Ethernet or a CAN-Ethernet gateway.
Intrepid’s RAD-Galaxy is a multi-purpose Ethernet multi active-tap, media converter and ISO CAN FD tool for Automotive Ethernet applications. Using the RAD-Galaxy, you can monitor both sides of up to 6 BroadR-Reach® (100BASE-T1 compatible) links in active tap mode, or connect your laptop to up to 12 nodes in media converter mode. In addition to supporting Automotive Ethernet, the RAD-Galaxy supports 8 ISO CAN FD networks, 1 LIN channel and a Diagnostics over IP (DoIP) channel.
