Active Network TAPs

Many automotive architectures are moving toward Ethernet-based vehicle networks to increase bandwidth and provide the latest features customers demand, such as infotainment, safety, connectivity, and autonomous functions.

However, many in the automotive industry are accustomed to other vehicle networks which can simply be monitored with a single connection such as an OBD port. Of course, this is not possible with Ethernet-based networks due to its complex signaling, switched architecture, and topology.

For some it is possible to simply use port mirroring — program the switch to copy all traffic to a single port for monitoring. However, this approach results in several problems that interfere with testing and validation:

  • Dropped data due to a bottleneck at the monitored port
  • Cannot provide captures of malformed or unrecognized frames
  • Does not provide exact timing (when the frame “hits the wire.”)

Intrepid Control Systems Active Network Taps made for automotive networking.  It solves these problems by:

  • Port Forwarding — passes all the all traffic in both directions
  • Port Copying — sends a copy of all the traffic out a diagnostic port
  • Frame Encapsulation —  “Wraps” good and even bad frames and adds a hardware timestamp, which captures bad frames and provides when each frame “hits the wire.”

Intrepid Control Systems Automotive Network Taps are the first active taps on the market to support Time-Sensitive Networking (TSN) Frame Preemption (IEEE 802.1Qbu), Interspersing Express Traffic Task Force (IEEE 802.3br). Intrepid hardware has 100/1000/10GBASE-T1 or 10BASE-T1S (PHYs), allowing it to tap a single link between ECUs and/or switch ports at the rate of 100 Mbps. The Intrepid device allows Ethernet transmit on either port while tapping a link.

Active Network TAPs

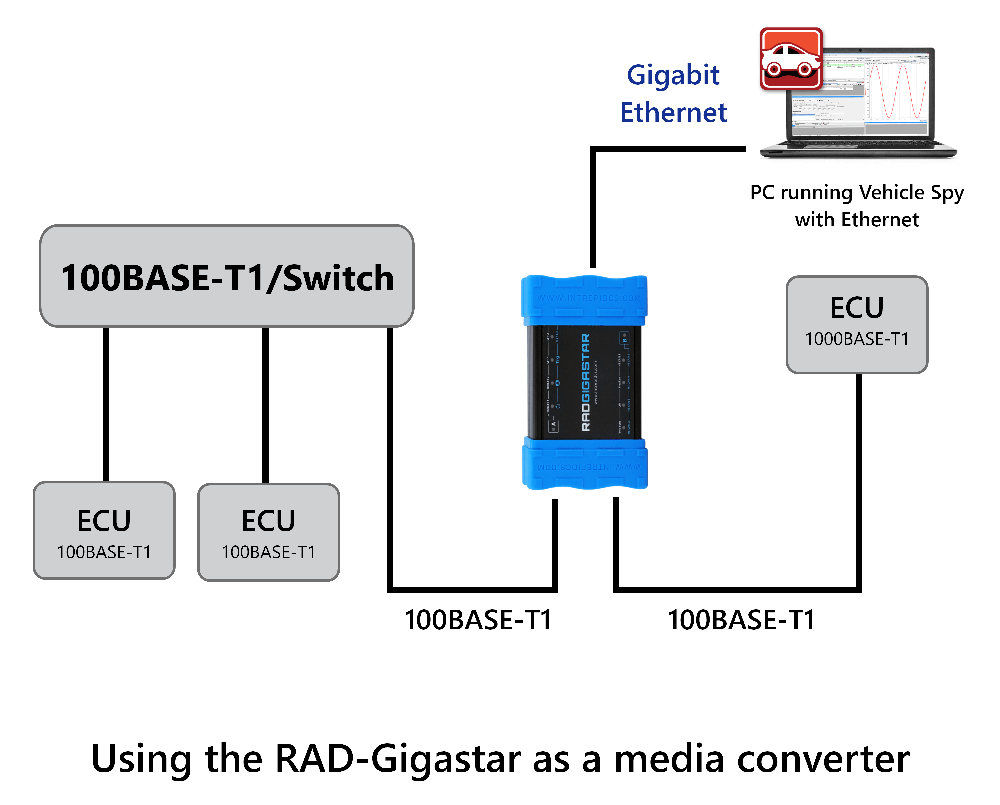

The Intrepid Control Systems Network Taps can also be configured to act as a stand-alone media converter, allowing a PC to interact with two Automotive Ethernet ECUs. This allows one to simulate nodes, or perform direct diagnostics or ECU flashing. Also, the “Pure” Media Converter Mode disables encapsulation of messages and even allows connections between media of different bit rates, buffering as needed.

ECU / Gateway Testing

Intrepid Hardware has the ability to test between two ECUs (hosts) or between an ECU and a 100BASE-T1, 1000BASE-T1, 10GBASE-T1 switch, plus CAN FD networks, with 10 ns time accuracy.  This makes it ideal for ECU testing applications, as well as port-to-port and Ethernet-to-CAN FD latency testing.

RAD-Comet 3

RAD-Comet 3 - 10BASE-T1S Converter

The RAD-Comet 3 is a versatile device for developing and testing 10BASE-T1S communication in automotive systems. It can be programmed to simulate a node on a 10BASE-T1S network as well as capture and analyze 10BASE-T1S traffic simultaneously with other vehicle networks.

RAD-Comet 2

RAD-Comet 2 - 10BASE-T1S Converter

The RAD-Comet 2 is a versatile device for developing and testing 10BASE-T1S communication in automotive systems. It can be configured and used to simulate a node on a 10BASE-T1S network as well as capture and analyze 10BASE-T1S traffic simultaneously with other vehicle networks.

RAD-Galaxy

RAD-Galaxy

Intrepid’s RAD-Galaxy is a multi-purpose Ethernet multi active-tap, media converter and ISO CAN FD tool for Automotive Ethernet applications. Using the RAD-Galaxy, you can monitor both sides of up to 6 BroadR-Reach® (100BASE-T1 compatible) links in active tap mode, or connect your laptop to up to 12 nodes in media converter mode. In addition to supporting Automotive Ethernet, the RAD-Galaxy supports 8 ISO CAN FD networks, 1 LIN channel and a Diagnostics over IP (DoIP) channel.

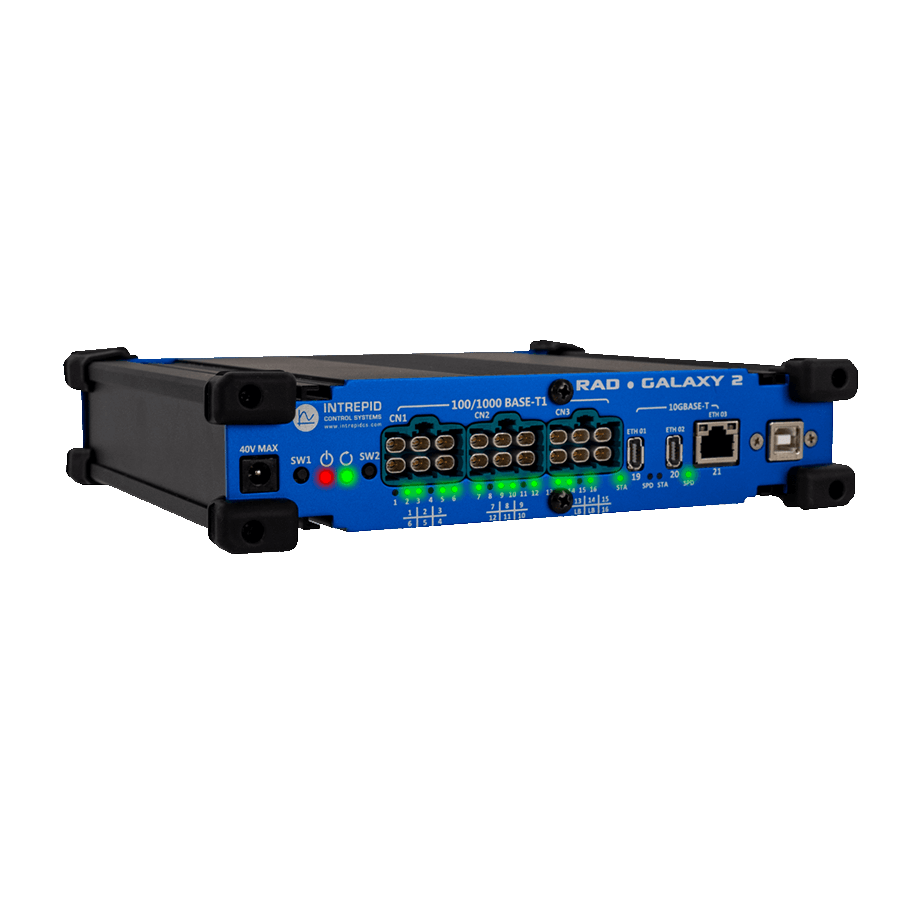

RAD-Galaxy2

RAD-Galaxy 2

Intrepid’s RAD-Galaxy 2 is a multi-purpose Ethernet Active Tap and Gateway for Automotive Ethernet.

RAD-Gigastar

RAD-Gigastar

The RAD-Gigastar can monitor one pair of 100/1000BASE-T1* connections with an additional pair of SFP cages to support optical/ copper SFP transceivers. In addition, the RAD-Gigastar can also operate as a programmable gateway to create an Ethernet-to-Ethernet or a CAN-Ethernet gateway.

RAD-Star2

RAD-Star 2

Intrepid’s RAD-Star 2 is a multi-purpose, dual Ethernet gateway for Automotive Ethernet applications. Using the RAD-Star 2, you can monitor both sides of a BroadR-Reach® (100BASE-T1 compatible) connection or connect your laptop to 2 nodes in media converter mode. As a gateway to standard 8-wire Gigabit Ethernet, RAD-Star 2 makes any existing standard Ethernet device, laptop, or data logger compatible with BroadR-Reach® (100BASE-T1 compatible).

Compare Intrepid’s Active Network Taps
