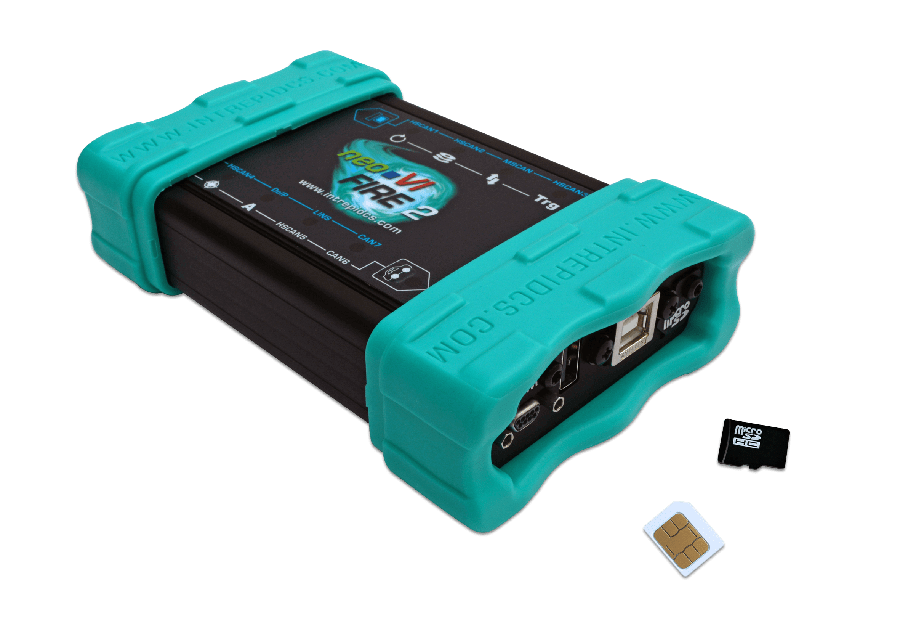

neoVI FIRE 2

Next Generation Multi-Protocol Vehicle Interface & Data Logger

neoVI FIRE 2: 8x CAN FD, 2x LIN, Ethernet:DoIP/XCP

Modern vehicle architectures are expanding to include Ethernet and CAN FD in addition to existing CAN and LIN networks. The neoVI FIRE 2 provides Ethernet, eight channels of CAN (including CAN FD) and two channels of LIN in one tool. All channels run simultaneously and are time-stamped in hardware.

Features

  • 8x DW CAN / CAN FD channels
  • 4x software enabled CAN termination
  • 2x LIN channels
  • 1x DoIP activation line
  • 2x Gigabit Ethernet (1000BASE-T) for use with DoIP, XCPoE and more
  • 10x Programmable tri-color LEDs
  • 2x full-size SD cards for up to 2 terabytes of storage with support for SD 3.0 with 800 Mbps logging perfor- mance
  • Real Time Clock for hardware timestamping of all messages and backup at 25ns
  • Ethernet as the PC interface
  • Membrane LEDs to show link, error, and activity status
  • Membrane Buttons to control trigger data logger
  • Internal extended temperature battery for safe shutdown
  • Vehicle battery level wakeup
  • Buzzer

Applications

  • Standalone data logger
  • Standalone ECU or vehicle simulator
  • In-vehicle data acquisition system
  • Captive test fleet data collection
  • Fleet management
  • Vehicle interface with J2534 and RP1210

Standalone Logging, Scripting, and Simulation

In addition to working as a PC interface, the neoVI Fire 2 can operate in standalone mode. It can run real-time scripts, log data to two removable full-size SD cards, and simulate ECUs and gateways. With these features, it is also possible to run a script to reflash ECUs using data from the SD card.

The neoVI Fire 2 is capable of logging to two full-size SD cards, using real-time, fail-safe FAT32 storage  for reliability and PC compatibility.

The neoVI Fire 2 also has a real-time clock for hardware timestamping of all messages. A robust power management system automatically powers down the neoVI Fire 2 and it wakes up again based on network activity or the connection of a PC.

The Power of Scripting – CoreMini

If you need to support a proprietary protocol, set up a simulation to run in parallel with the data logger, or any other custom action, the system offers a scripting environment for you to expand the base functionality to fit your unique needs. This makes the entire system very flexible and adaptable.

HD26 Pinout

1. NC 10. GND 19. VBAT
2. DW CAN 4 L 11. NC 20. NC
3. DW CAN 5 L 12. DW CAN 4 H 21. DW CAN 7 L
4. DW CAN 1 L 13. DW CAN 5 H 22. LIN 01 / ISO K 01
5. DW CAN 8 L 14. DW CAN 1 H 23. LIN 02
6. DW CAN 2 L 15. DW CAN 8 H 24. EXT WAKE
7. DW CAN 3 L 16. DW CAN 2 H 25. ETH 01 ACTIVATE
8. DW CAN 6 L 17. DW CAN 3 H 26. DW CAN 7 H
9. NC 18.DW CAN 6 H
