VEHICLE NETWORK TESTER (IVNT-03)

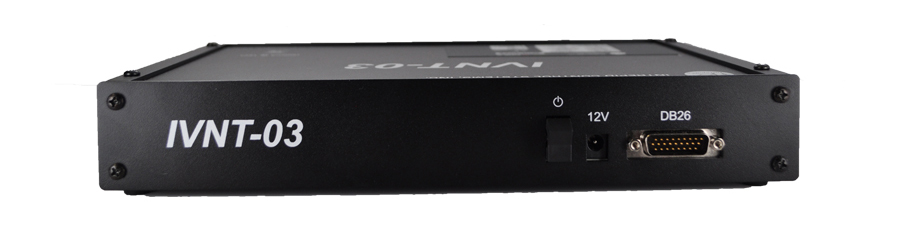

Intrepid Control Systems’ Vehicle Network Tester (IVNT-03) allows users to connect test low-level physical layer capabilities of on-board controllers connecting to Classical CAN (Controller Area Network) as well as CAN FD (Flexible Data).
The IVNT supports low-level, physical layer validation on up to two dual wire CAN or CAN FD networks as well as supporting connection for data monitoring/transmitting on six additional dual wire CAN or CAN FD buses. Two of the supporting connections are Selectable CAN and can be configured to be single wire (SW) CAN bus, LSFT CAN bus, or Dual-Wire CAN or CAN FD. There are also up to four local interconnect networks (LIN). In conjunction with the included Vehicle Spy 3 software, the IVNT will test high-level application/diagnostic layer services and functions. The IVNT will run each test and give a Pass/Fail status.
The IVNT setup has been designed for ease and simplicity. Connect the controller to CAN High and CAN Low, power the unit, and start the test in the PC application software. After taking these few steps, you will receive a report on the entire system test. Individual tests can be selected and run as well.
Low-Level Tests Include:
- Measure VBATT
- Short HSCAN (H)igh to (L)ow – Measure Voltage of Low
- Short HSCAN H to L – Measure Voltage of High
- -1V offset to HSCAN, 1600pf cap added – Measure Voltage of Low
- -1V offset to HSCAN, 1600pf cap added – Measure Voltage of High
- +1V offset to HSCAN, 1600pf cap added – Measure Voltage of Low
- +1V offset to HSCAN, 1600pf cap added – Measure Voltage of High
- Short HSCAN L to VBATT – Measure Voltage of Low
- Short HSCAN H to VBATT – Measure Voltage of High
- Short HSCAN L to GND – Measure Voltage of Low
- Short HSCAN H to GND – Measure Voltage of High
- Measure HSCAN L relative to V- (Vehicle Ground)
- Measure HSCAN H relative to V-
- Measure HSCAN Resistance
- Set HSCAN Resistance 0Ω, 60Ω, or 120Ω
- Short MSCAN H to L – Measure Voltage of Low
- Short MSCAN H to L – Measure Voltage of High
- -1V offset to MSCAN, 1600pf cap added – Measure Voltage of Low
- -1V offset to MSCAN, 1600pf cap added – Measure Voltage of High
- +1V offset to MSCAN, 1600pf cap added – Measure Voltage of Low
- +1V offset to MSCAN, 1600pf cap added – Measure Voltage of High
- Short MSCAN L to VBATT – Measure Voltage of Low
- Short MSCAN H to VBATT – Measure Voltage of High
- Short MSCAN L to GND – Measure Voltage of Low
- Short MSCAN H to GND – Measure Voltage of High
- Measure MSCAN L relative to V- (Vehicle Ground)
- Measure MSCAN H relative to V-
- Measure MSCAN Resistance
- Set MSCAN Resistance 0Ω, 60Ω, or 120Ω
High-Level Tests (using Vehicle Spy 3 Software):
- Diagnostic Service Command Request
- Diagnostic Service Command Response
- Diagnostic Service Response Data Validation
- Normal Mode Message Timing Accuracy
- Vehicle Network Simulation
- Signal Data Monitoring
- Signal Data Latency Test
- User Configurable Tests
