RAD-Epsilon XL
19-Port Gigabit Automotive Ethernet Managed Switch
Introducing the RAD-Epsilon XL, Intrepid’s rugged 19-port Gigabit Managed Switch. It’s engineered for the demanding needs of modern automotive development, from the bench to the vehicle.
Powered by dual Marvell 88Q6113 switch cores, the RAD-Epsilon XL offers an extensive suite of managed features. Configure and manage VLANs, analyze traffic with port mirroring, and manage bandwidth with ingress policing and rate limiting. Its advanced capabilities, including address whitelisting/blacklisting and a powerful TCAM for deep packet inspection, make it an indispensable tool for network analysis, simulation, and testing.
This powerful switch also integrates critical automotive technologies, including full support for the OPEN Alliance TC17 MACsec Profile for network security and TC10 for power-saving sleep/wake-up functionality.
RAD-Epsilon XL Key Features:

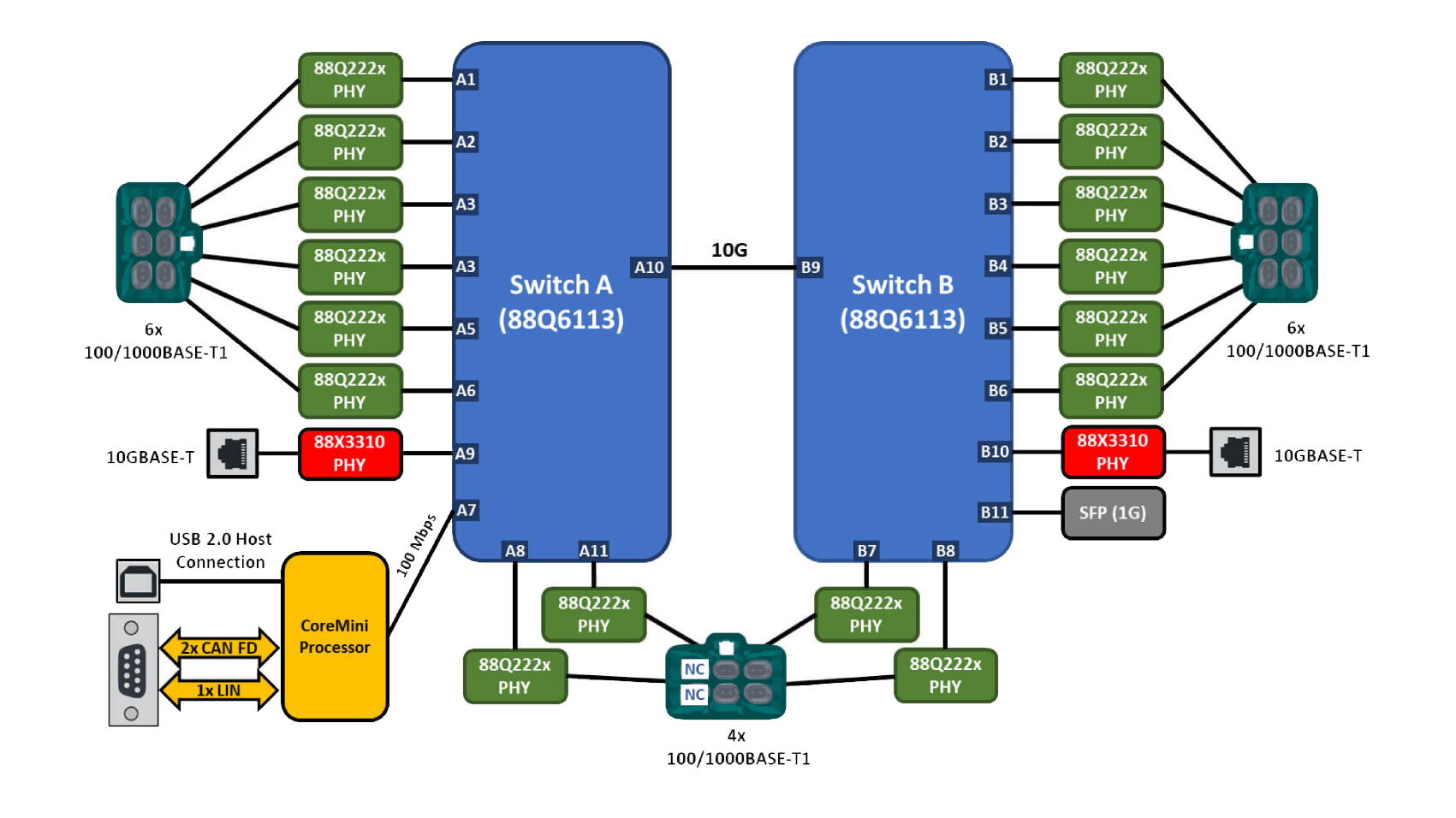

- 19 High-Speed Ports: 16x 100/1000BASE-T1, 2x 10GBASE-T, and 1x SFP (1G).
- AVB/TSN Ready: Includes embedded gPTP, credit-based shaping, time-aware shaping, and more
- Deep Packet Inspection: Powerful TCAM for advanced filtering and analysis.
- Full API Access: Access PHY and switch registers using Vehicle Spy or the Intrepid open-source API.
- Legacy Network Support: Includes 2x CAN FD channels and 1x LIN channel.
