RAD-Epsilon Family

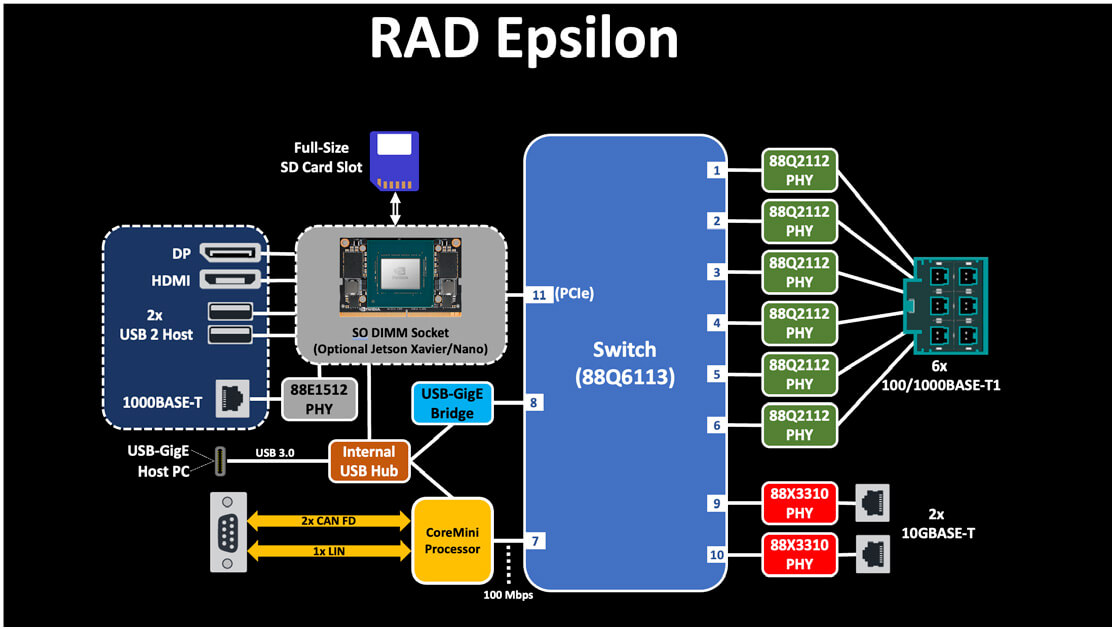

9-Port Gigabit Automotive Ethernet Managed SwitchIntrepid’s RAD-Epsilon is a rugged 9-port Gigabit managed switch with Nvidia Jetson Nano Integration designed specifically for bench/vehicle network and Autonomous development. In addition to its Ethernet functionality, it integrates many of the key CAN, LIN, and scripting features found in our vehicle networking tools.
PRODUCT FEATURES
- Marvell 88Q6113 Managed Switch designed for Automotive Environment
- Embedded AVB/TSN protocol stack
- IEEE 802.1Q tag support with 4096 VLANs
- Port mirroring
- Per-port address whitelisting/blacklisting
- Ingress policing and rate limiting
- Ternary Content Addressable Memory (TCAM)
- ETHERNET INTERFACES
- 6x 100/1000BASE-T1 ports (MATEnet Connection System
- 2x 10GBASE-T Ports
- 1x USB/GigE Bridge
- LEGACY NETWORKS
- 2x CAN FD Channels w/ programmable termination
- 1x LIN
- AVB/TSN STANDARDS SUPPORTED
- 802.1AS – Generalized Precision Timing Protocol (gPTP)
- 802.1Qav – Forwarding and Queuing for Time-Sensitive Streams (Credit Based Shaping)
- 802.1Qbv – Enhancements for Scheduled Traffic (Time Aware Shaping)
- Static Stream Reservation
- Embedded processor for scripting and embedded C applications
- Intrepid Security Module supporting cybersecurity applications
- LEDs for network status and device configuration
- Field-upgradeable firmware
- Optional Nvidia Jetson Integration for embedded Linux development
- 1U half-rack (9.5”) form factor
AVB/TSN USE CASES
- AVB compliant bridge supporting static streams
- AVB/TSN network sensitivity analysis (Insert latency or switch hops;
Add additional ECU’s for more BE or stream traffic.)
MEDIA CONVERTER
The BASEs are covered! 10GBASE-T, 100/1000BASE-T1, 100/1000BASE-T, and a USB/GigE Bridge. A media converter is as simple as setting up bidirectional port forwarding between any 2 ports. The RAD-Epsilon can be configured for up to two T/T1 media converters without losing the use of the remaining ports of the switch!
GATEWAY APPLICATIONS
In addition to providing a network interface to your PC, the embedded processor in the RAD-Epsilon can be programmed to run real-time applications such as network gateways. Applications can be programmed in Vehicle Spy’s Function Blocks, C Code, or the Gateway Builder GUI, all of which are easily compiled to run on the embedded processor.
VEHICLE SPY ETHERNET APPLICATIONS
While RAD-Epsilon does not function as an Automotive Ethernet Active Tap, this does not prevent it from taking advantage of some of Vehicle Spy’s many Ethernet applications.
- AVDECC Controller
- SOME I/P Discovery, Subscription, and RPC
- DoIP
- GUI driven Gateway Builder
