ValueCAN 4

Low-Cost, High-Performance Vehicle Network Interface Family for CAN and CAN FD

ValueCAN 4 Family Overview

ValueCAN 4-2EL (2 CAN FD, 1 Ethernet, 1 LIN)

ValueCAN 4 Industrial (2 Isolated CAN FD, 1 Ethernet, 1 LIN)

The ValueCAN 4 series is Intrepid’s next generation of low-cost, high-performance interfaces for CAN and CAN FD networks. A family of four related products, the ValueCAN 4 series offers CAN FD support, increased buffer size, improved latency performance, software-controlled CAN bus termination, enhanced LED indicators for CAN traffic, standalone operation over USB, a ruggedized metal case with protective rubber boot, and high-speed USB 2.0 support (480 Mbps) with Type A or Type C connectors.

Multiple channel and cable configuration options permit support for 1, 2 or 4 CAN / CAN FD channels, as well as an option that includes LIN and Ethernet/DoIP.

Key Features

High-bandwidth 1 Mb/s baud rate for CAN and up to 8 Mb/s for CAN FD on each channel
Double-buffered CAN transmission
Fully USB-powered
Fully isolated from the PC to resolve grounding or noise issues
Rugged metal case with rubber boot on all models
Electrically hardened to survive abusive environments, including reverse battery voltage and electrical transients
Real-time acceleration and standalone mode enabling high-speed flashing, gatewaying and ECU simulation
Load real-time Function Block scripts and C code created with Vehicle Spy to execute with microsecond resolution
Supports J1939, OBD2 on CAN, Keyword Protocol over CAN, UDS diagnostics, CCP/XCP, DeviceNET, and CANOpen
ISO15765 for CAN FD implemented in hardware for super-fast ECU flashing

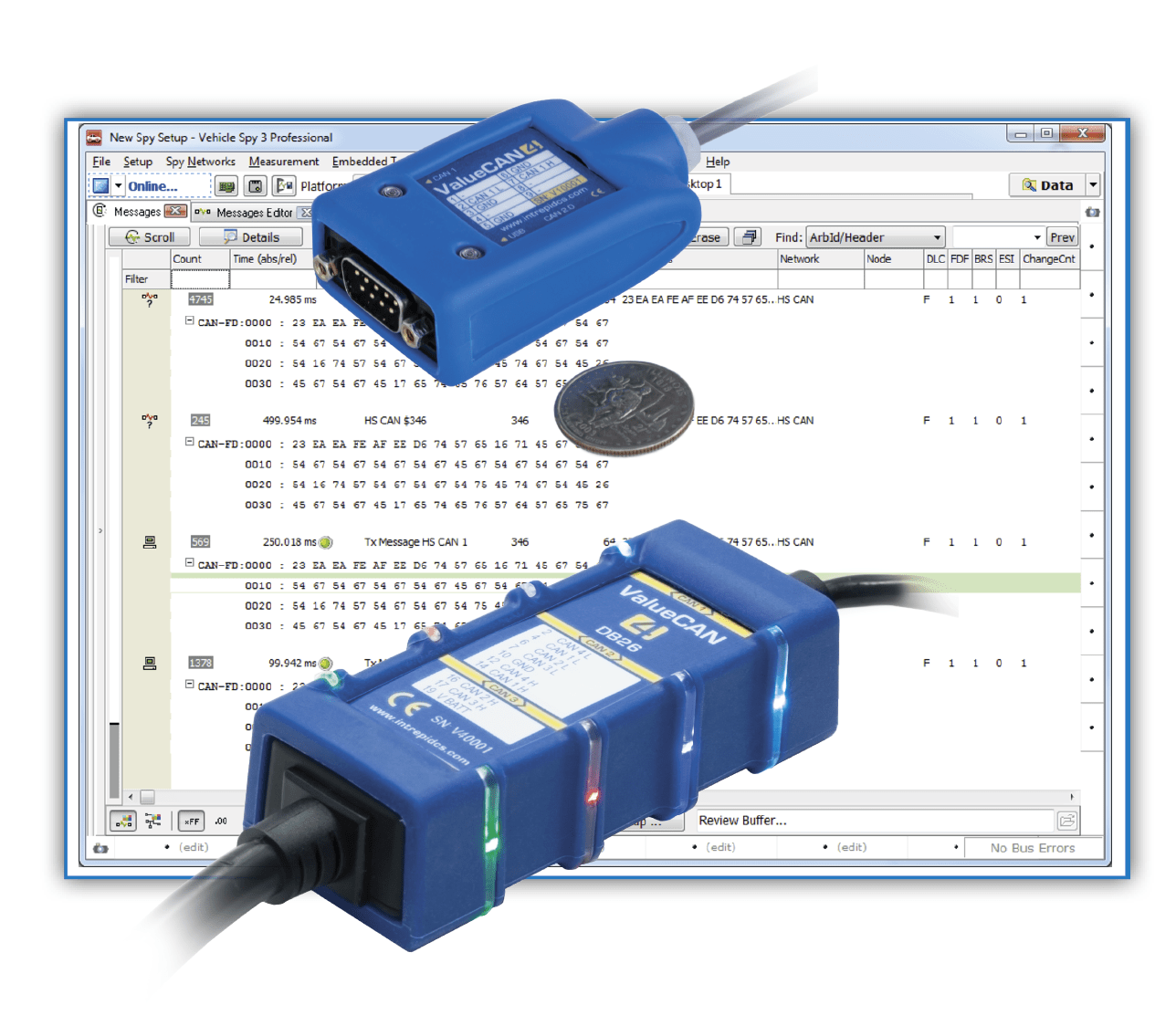

Vehicle Spy Trial Edition software included, which can be upgraded to the full Vehicle Spy software package
Supports neoVI DLL open API, J2534, Linux, and RP1210
64-bit timestamping to an accuracy of 25 nanoseconds

The ValueCAN 4 Family


	Feature	ValueCAN 4-1	ValueCAN 4-2	ValueCAN 4-4	ValueCAN 4-2EL	ValueCAN 4 Industrial
Networks	CAN / CAN FD Channels	1 CAN	2 CAN FD	4 CAN FD	2 CAN FD	2 Galvanically Isolated CAN FD
	ISO - Non ISO Switch	-	Yes
	SW Enabled CAN Termination	NO	Yes
	LIN	-	-	-	1 LIN	1 Galvanically Isolated LIN
	Ethernet	-	-	-	1 ETH Channel / DoIP	1 ETH Channel / DoIP
Power	USB Power	Yes	Yes	Yes	Yes	No (Pluggable Terminal Blocks)
	Power Consumption	5V, 0.183A, 10.358Wh	5V, 0.230A, 10.342Wh	5V, 0.241A, 10.378Wh	5V, 0.243A, 10.378Wh	9VDC-42VDC
	Voltage Range	-	-	-	7-40V	7-40V
Cables	USB Isolation	Yes
	USB Type A Option*	Yes				No
	USB Type C Option*	Yes
	Cable End Options	2, purchase separately	2, purchase separately	3, included with the device**	3, included with the device**	Included 4 Pos 5mm pitch Plug
	Customizable Cable Ends	Yes				No
Case	Case Material	Aluminum				DIN rail
	Weight	0.2 lbs	0.2 lbs	0.6 - 0.8 lbs	0.6 - 0.8 lbs	0.7
	Dimensions	In sheet	In sheet	In sheet	In sheet	In Sheet
	USB LED	Case				Snaps on to DIN rail
	CAN LEDs	Case	Case	Case LED rings	Case LED rings	DIN Rail LED rings
Other Features	Controllable CAN/USB LEDs	Yes
	Standalone Capability	Yes
	High Level Protocol Support	Yes
	DLL Support	Yes
	Bitsmash	Yes
	Check Termination	Yes
	ISM	NO	Yes
Certifications	CE Compliant	Yes
	IP 66	Yes				No
	Temp. Range	-40 to 85 C				In Sheet

ValueCAN 4-1

1x CAN
No internal CAN termination
Isolated high-speed USB 2.0 (480 Mbps) with Type A and Type C connector options
IP6X sealed metal enclosure (IP67 testing pending)
Most economical option

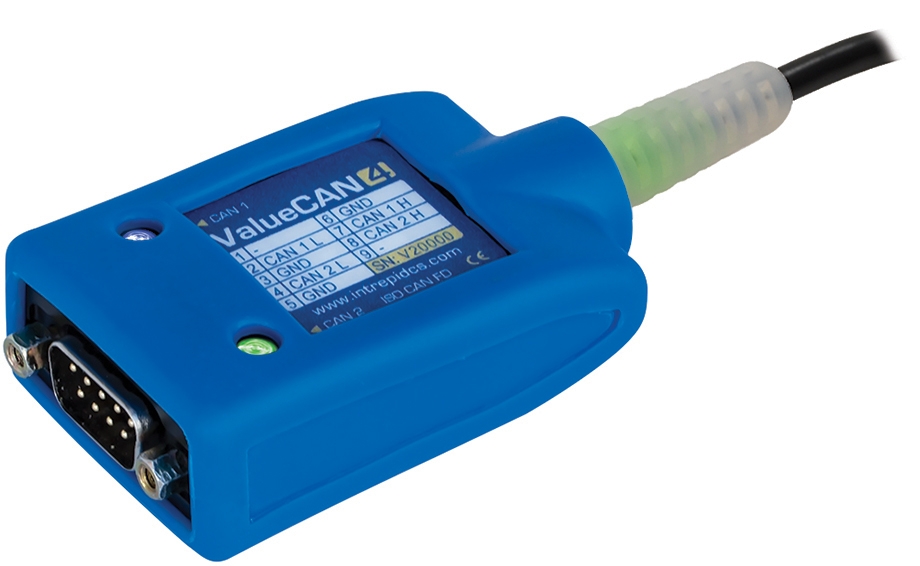

ValueCAN 4-2

2x CAN FD; baud rate up to 8 Mbps
Isolated high-speed USB 2.0 (480 Mbps) with Type A and Type C connector options
IP6X sealed metal enclosure (IP67 testing pending)
Supports icsneo40.DLL and J2534

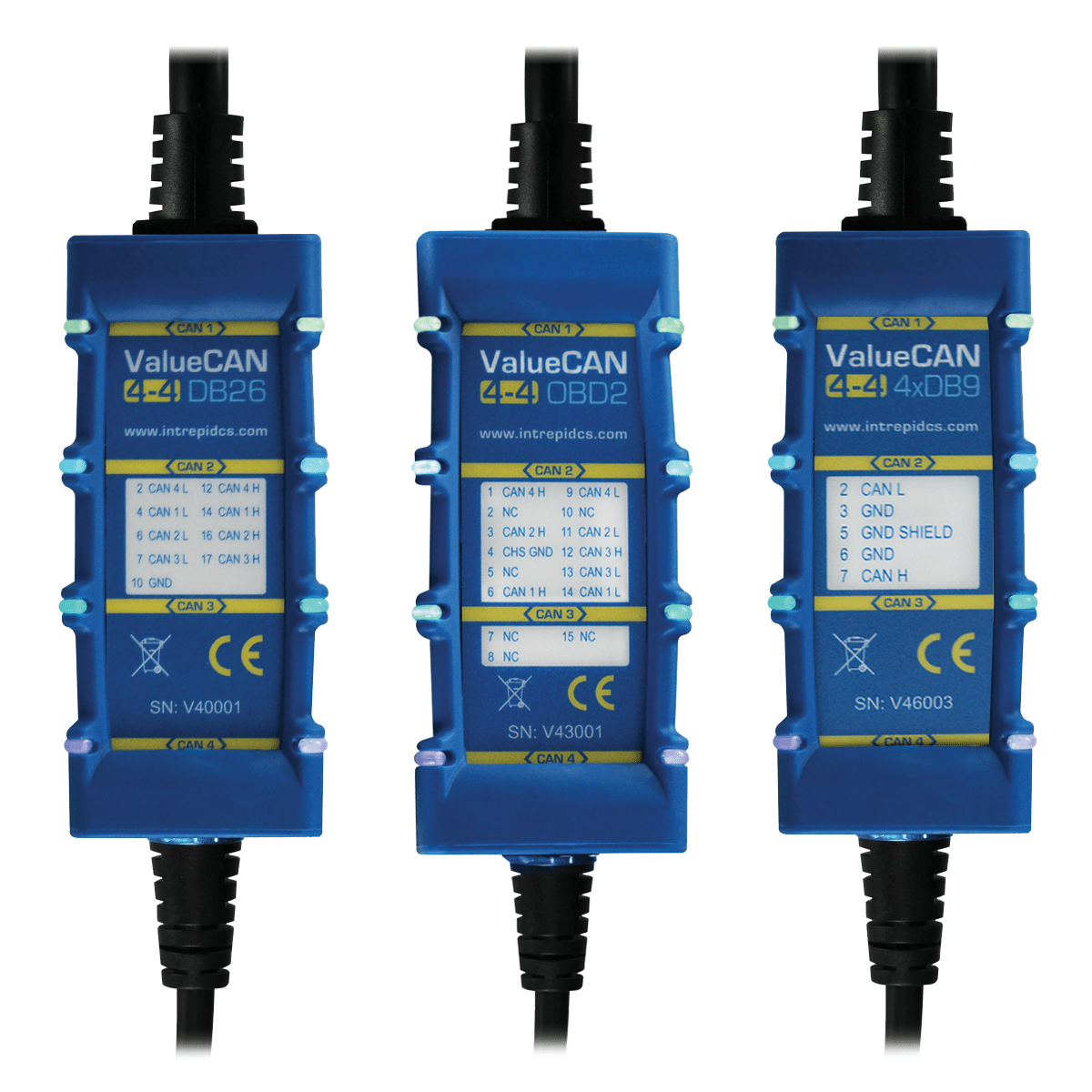

ValueCAN 4-4

Four vehicle network interface connector options:
- 1x OBD2
- 4x DB-9
- 1x DB-26
- Custom (contact Intrepid for details)
4x CAN FD
4 “Wraparound” color LEDs for easy status monitoring
No more need for custom cables: use a simple internal PCB card for OEM-specific OBD2 or DB-9 pinouts
Isolated high-speed USB 2.0 (480 Mbps) with Type A and Type C connector options
IP65 sealed metal enclosure

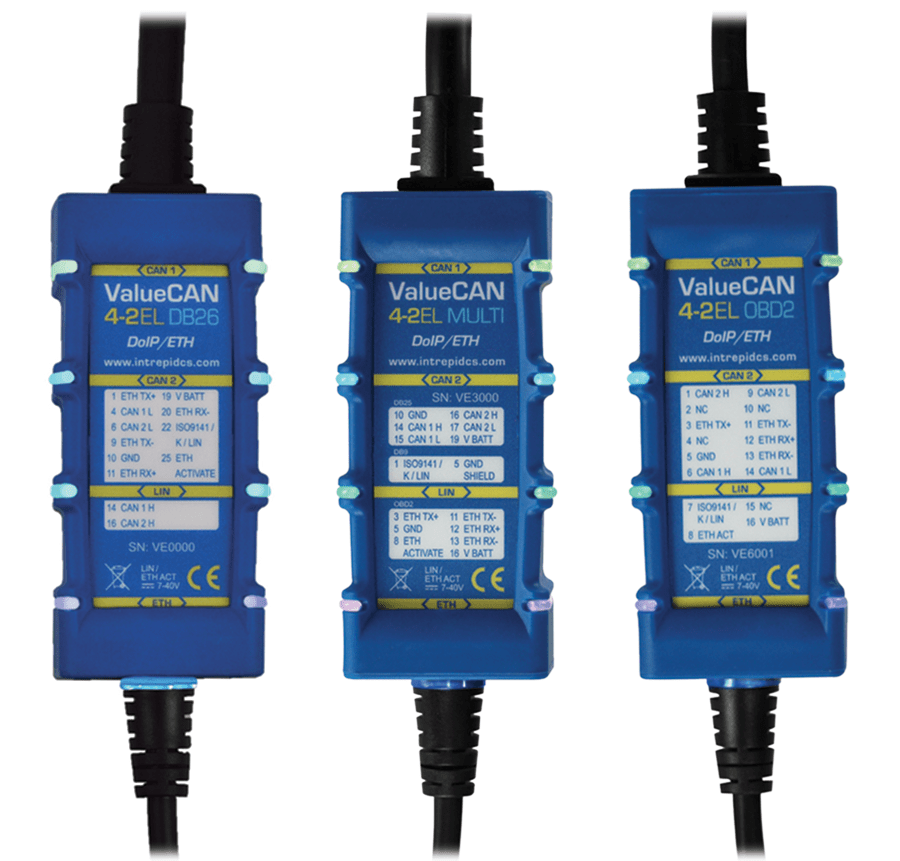

ValueCAN 4-2EL

Three vehicle network interface connector options:
- 1x OBD2
- 1x DB-26
- Custom (contact Intrepid for details)
2x CAN FD
1x LIN / K-Line
1x Ethernet (DoIP)
4 “Wraparound” color LEDs for easy status monitoring
No more need for custom cables: use a simple internal PCB card for OEM-specific OBD2 or DB-9 pinouts
Isolated high-speed USB 2.0 (480 Mbps) with Type A and Type C connector options
IP65 sealed metal enclosure

ValueCAN 4 Industrial

2 Independently galvanically isolated CAN FD channel backward compatible with CAN 2.0
1 Independently galvanically isolated LIN channel also configurable for K-Line
Configure or monitor using USB or Ethernet connection using a standard shielded RJ45 socket
24V with 100mA and 12V with 200mA support
USB Type-C connection for RAD-IO2 isolated analog, digital or temperature interfaces
Snaps on to DIN rail for easy mounting
